Turbidity Meter Kit – Portable HORIBA TB220-K

Auto range up to 2000 NTU, ISO 7027 and DIN EN 27027
Includes silicone oil, cleaning cloth, solutions and carry case
 Usually Stocked


$1,695.00 ex GST

SKU: TB220-K

Description

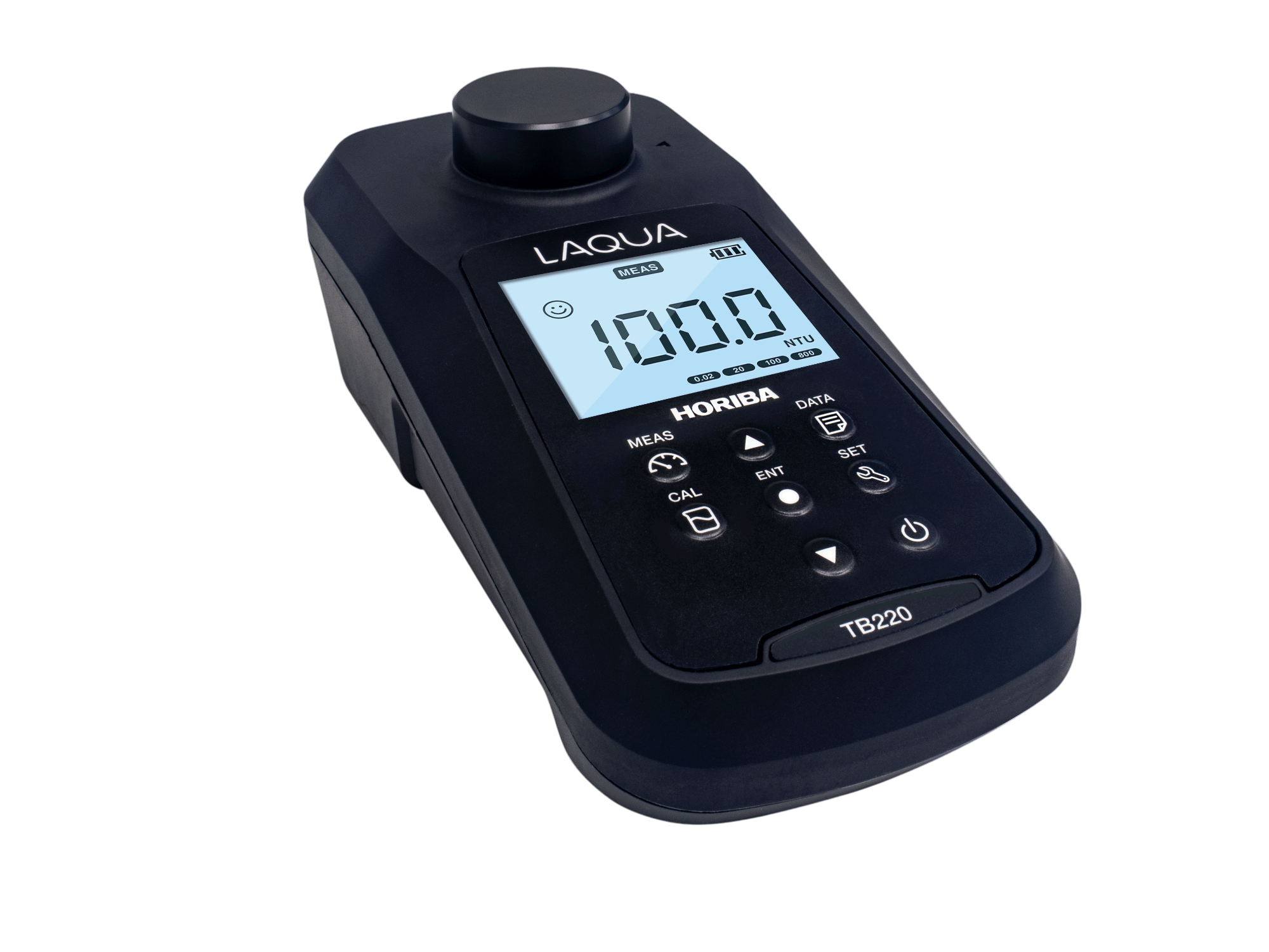

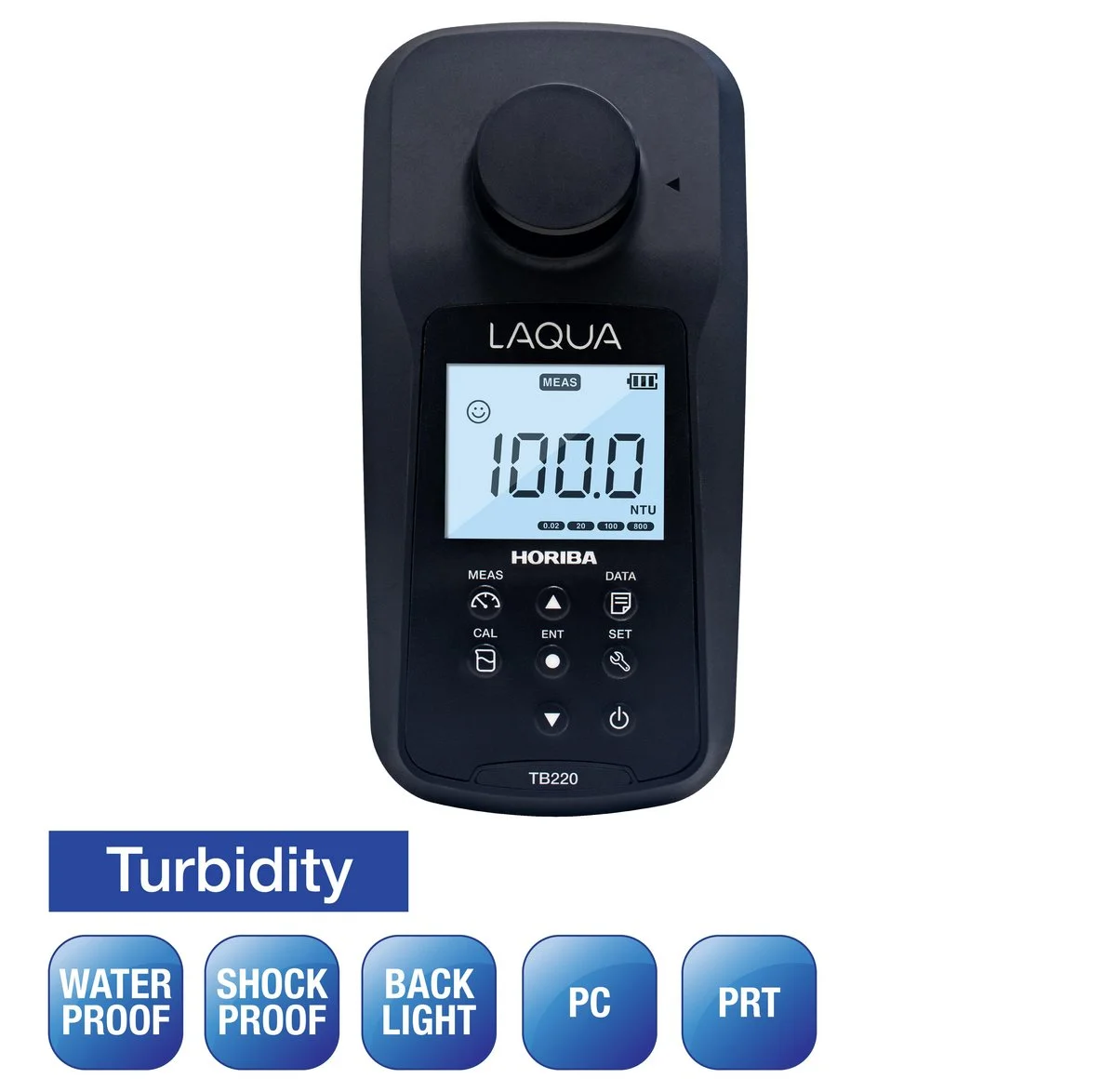

HORIBA TB220 Turbidity Meter Kit – Your Complete Solution for Accurate Water Testing

Take the guesswork out of water quality testing with the HORIBA TB220 Turbidity Meter Kit. The all-in-one solution is designed for precision, reliability, and convenience. Whether you work in a lab, a treatment plant, or out in the field, the TB220 gives you fast, accurate turbidity measurements you can trust.

It is built to meet ISO 7027 and DIN EN 27027 standards. This turbidity meter delivers results you can rely on for compliance and reporting. With up to four calibration points and a wide measurement range – auto-ranging up to 2000 NTU (including 0.02, 20, 100, and 800 NTU points), you can measure everything from crystal-clear drinking water to highly turbid samples with confidence.

Say goodbye to manual record-keeping. The TB220 stores up to 2000 data points, complete with date and time stamps, making audits and reporting a breeze. Plus, it’s PC and printer compatible and software upgradeable, so you’re always ready for the future.

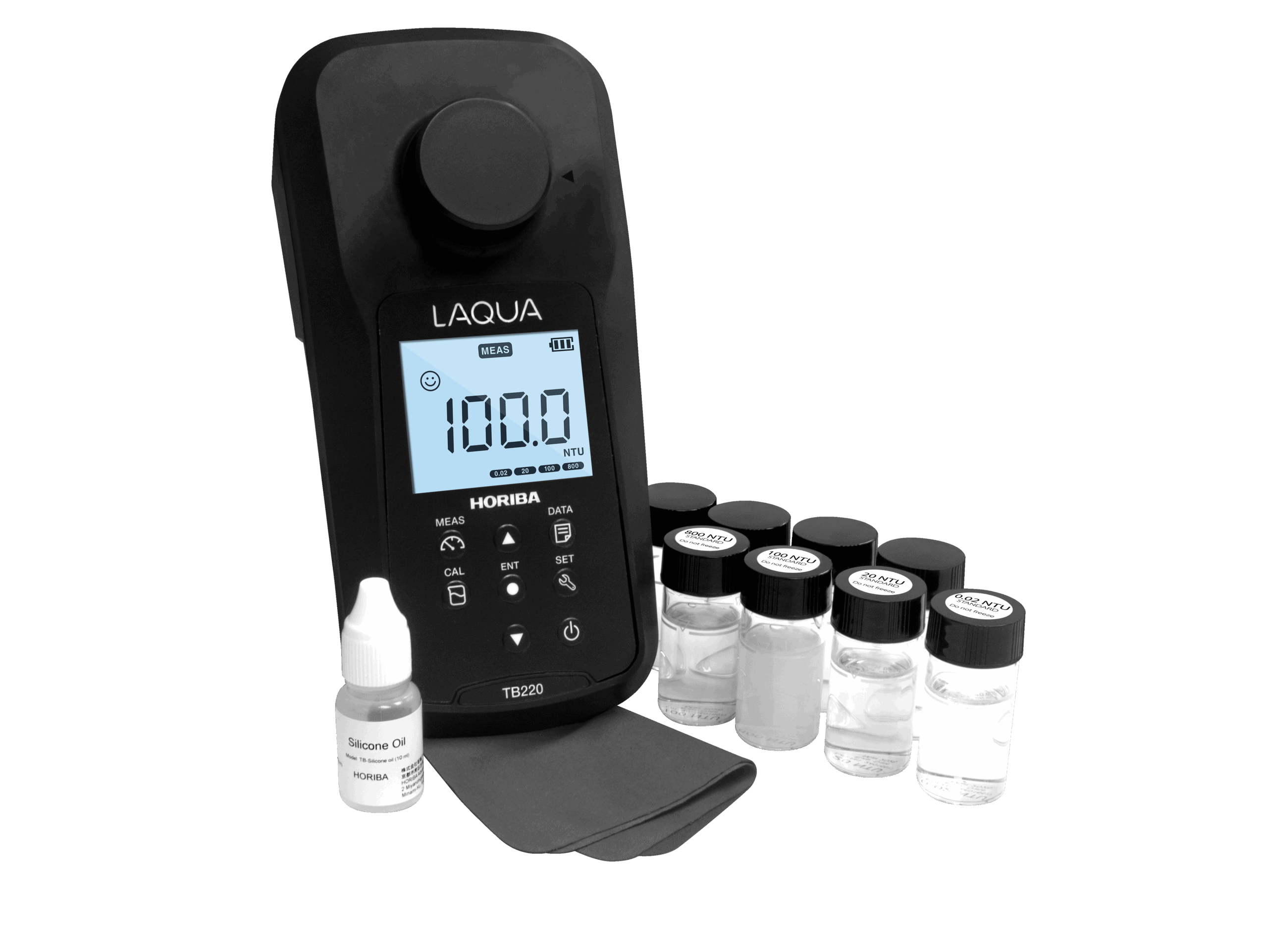

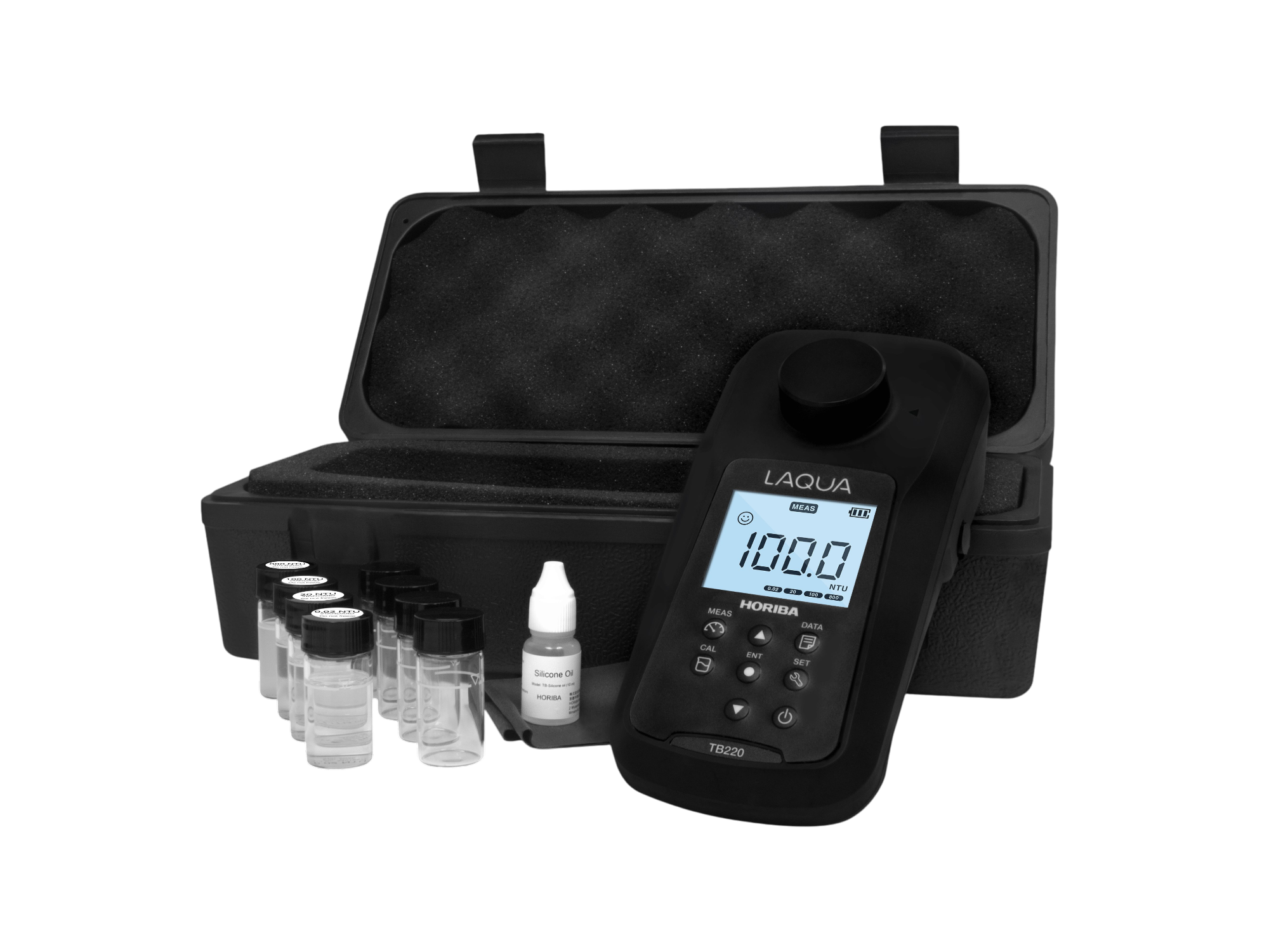

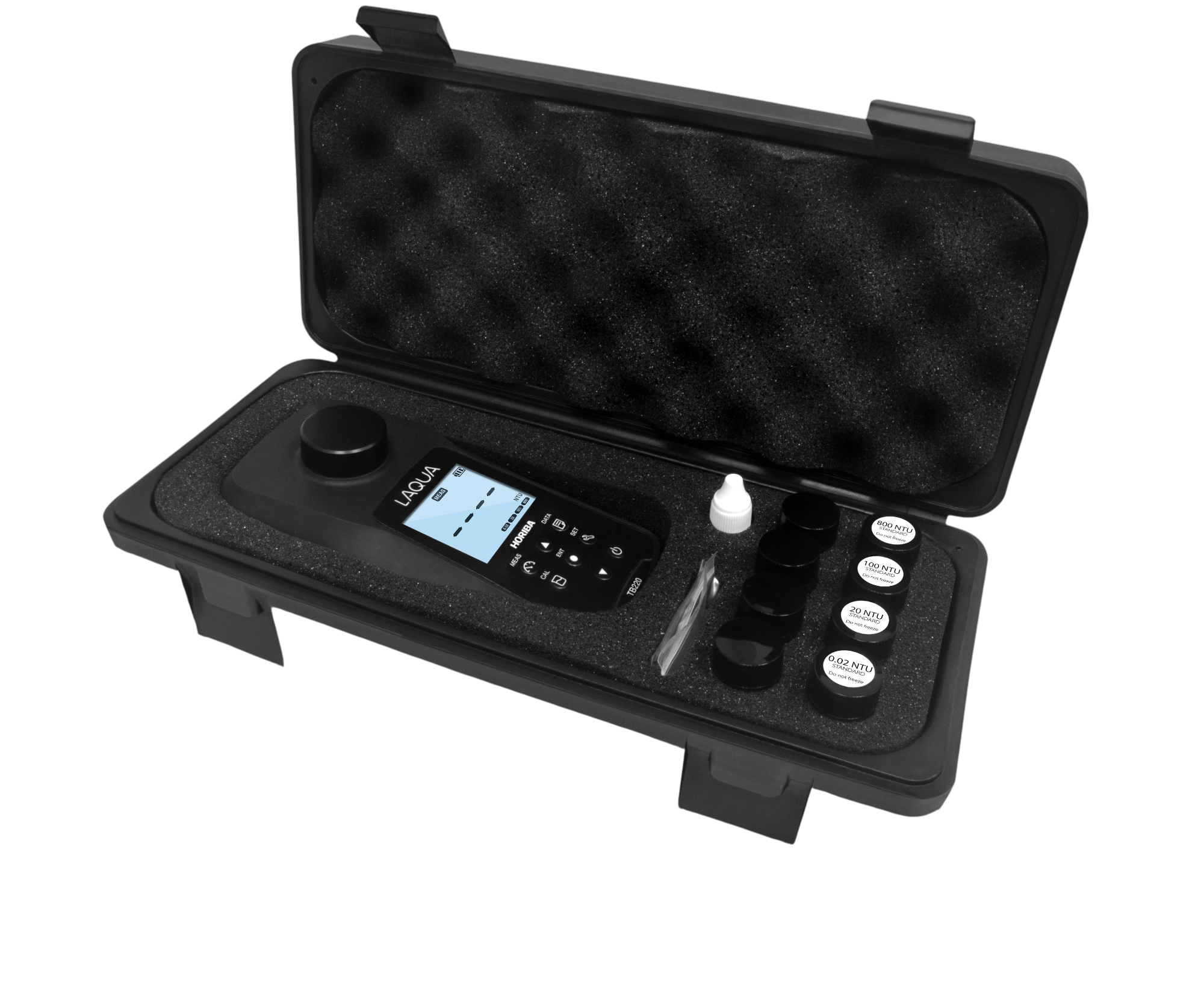

This convenient kit includes everything you need to get started right away:

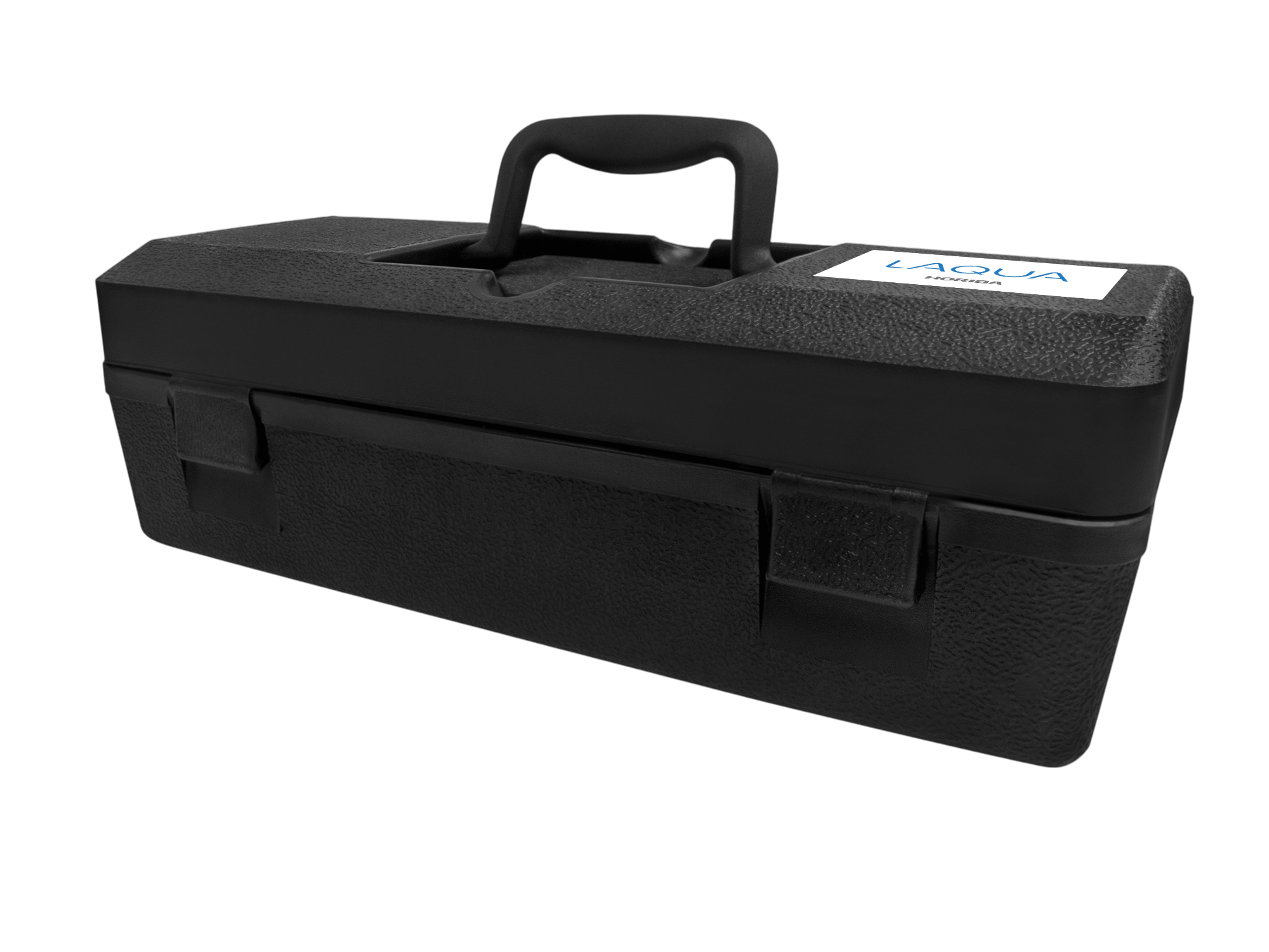

  • Rugged carrying case for portability

  • Instruction and Quick Start manuals for easy setup

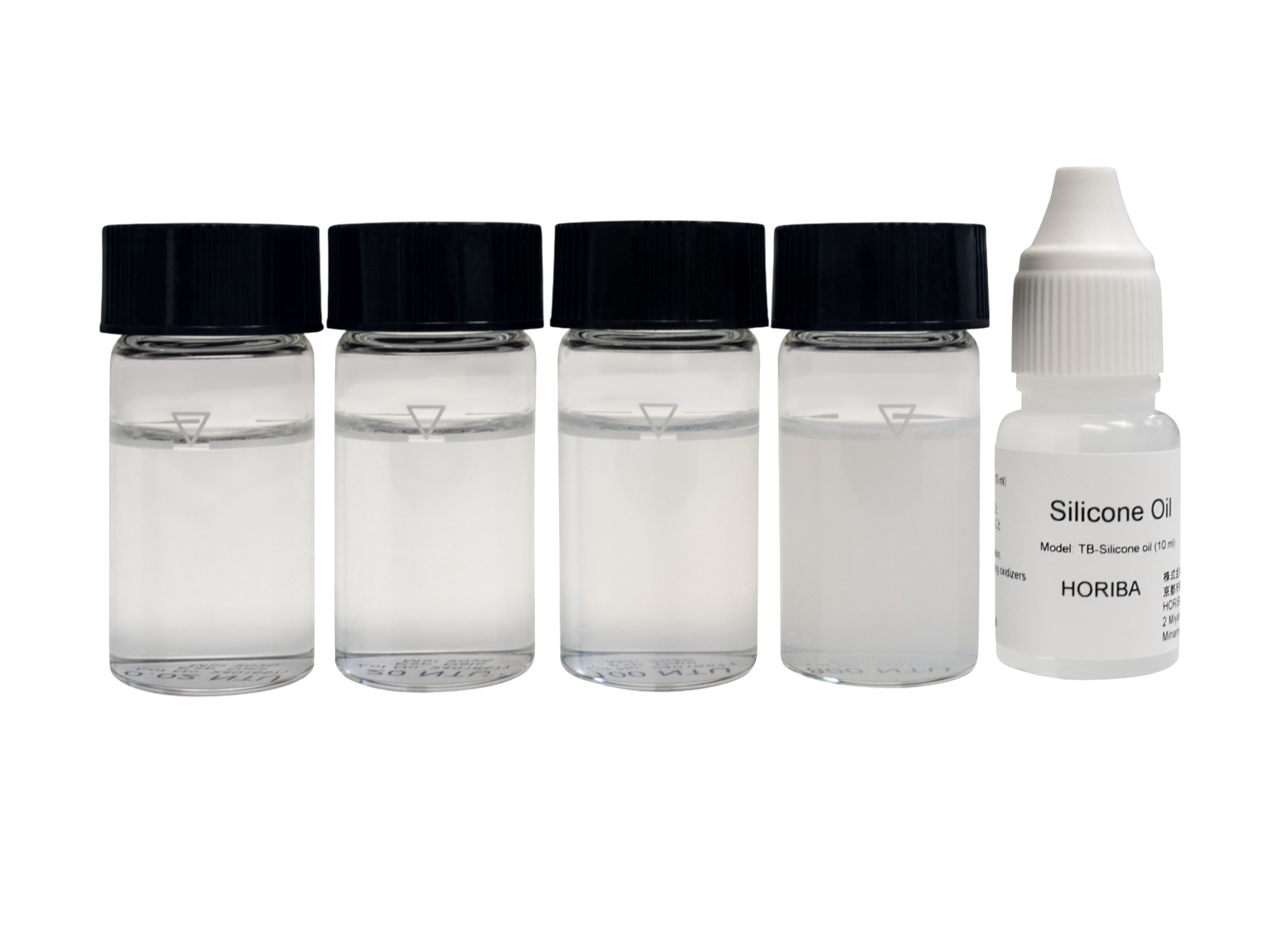

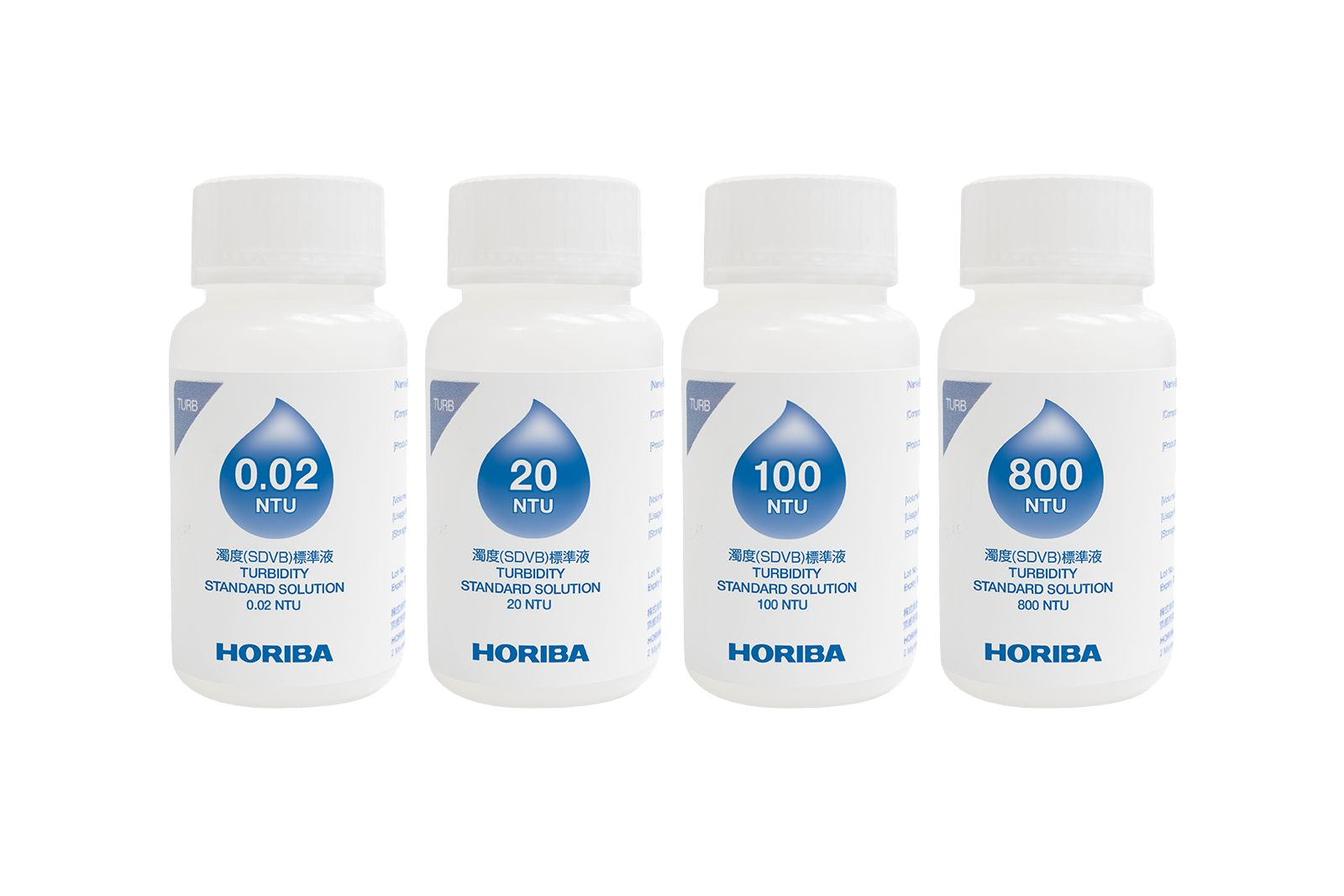

  • Sample vials and SDVB turbidity standard solutions (10 mL each) for calibration

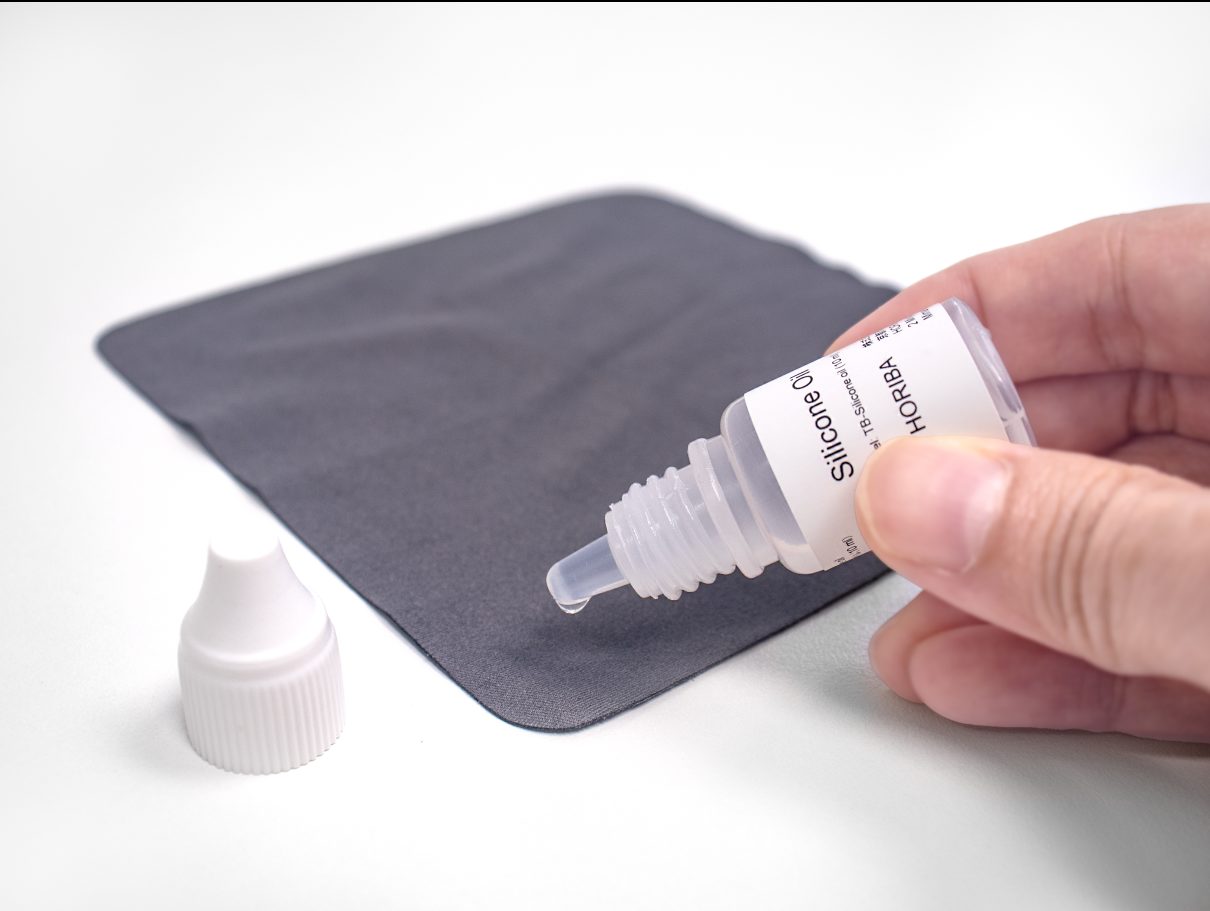

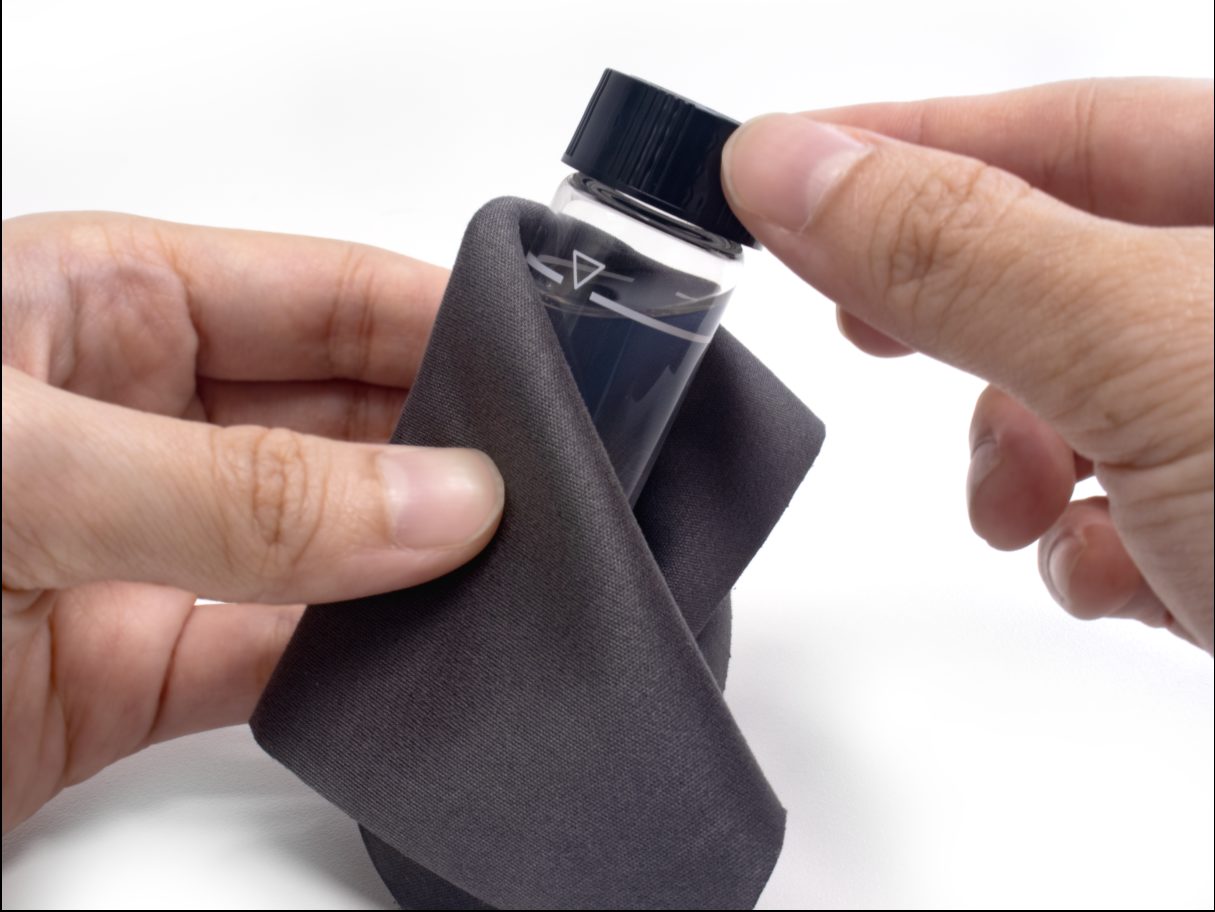

  • Silicone oil and a cleaning cloth to keep your vials in perfect condition

With the HORIBA TB220, you get laboratory-grade accuracy in a portable, easy-to-use package. Perfect for environmental monitoring, industrial water treatment, and routine quality control.

Reviews

There are no reviews yet.

Be the first to review “Turbidity Meter Kit – Portable HORIBA TB220-K”
Measuring Method
Ratiometric turbidity measurement using nephelometriclight scatter and transmitted light signals
Measuring Range
0.00 to 2000 NTU
Accuracy
0.00–1000 NTU: ±0.02 NTU or ±2%, 1001–2000 NTU: ±3%
Resolution
0.00–19.99 NTU, 20.0–199.9 NTU, 200–2000 NTU
Repeatability
±0.02 NTU or ±2%
Calibration Points
Up to 4 (selectable 0.02, 20, 100, 800 NTU)
Calibration Standards
Styrene divinylbenzene (SDVB) polymer solution
Compliance
ISO 7027, DIN EN 27027
Light Source
Infrared light emitting diode (860 nm)
Detector
Silicone photodiode
Sample Volume
10 ml
Memory
2000
Real-Time Clock
Yes
Date & Time Stamp
Yes
Auto Shut-Off
Off, 1 to 30 mins
Diagnostic Messages
Yes
Software Upgrade
Yes, PC (USB) cable required
PC Communication
Yes, PC (USB) cable required
Printer Communication
Yes, Printer (RS232) cable required
Display
Custom LCD with backlight (50 x 40 mm)
Housing
IP67 (Except for inside of sensor unit), shock & scratch resistant, non-slip
Power Requirement
4 x AA batteries
Operating Temperature
0 to 50 °C
Battery Life
2000 measurements*           *Depends on meter settings
Meter Dimensions
210 (L) x 110 (W) x 55 (H) mm
Meter Weight
Approx. 510 g (with batteries) / 410 g (without batteries)
